SOYO NEW X99 Dual CPU Motherboard Kit lntel Xeon E5 2680 V4&DDR4 32GB (2*16GB) LGA2011-3 M.2 NVME for Desktop Gaming Computer
SOYO NEW X99 Dual CPU Motherboard Kit lntel Xeon E5 2680 V4&DDR4 32GB (2*16GB) LGA2011-3 M.2 NVME for Desktop Gaming Computer
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop,Server
Audio Channels: 5.1
Back I/O Ports: 1x RJ45,PS/2 Combo,3 x Audio Jacks,4x USB 3.2/3.1 Gen 2,4 x USB 2.0
Battery Included: No
Brand Name: SOYO
Chipset: C612
Chipset Manufacturer: Intel
Choice: yes
Crossfire: crossfire
Hign-concerned Chemical: None
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 256GB
Memory channel: Four
Number Of Memory Slots: 8
Number of M.2: 2
Number of PCI: 2
Number of PCIe x 1: 2
Number of PCIe x 16: 1
Number of PCIe x 4: 1
Number of SATA Ports: 8
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),Chassis(SYS) Fan Connector(s),8-pin +12V Power Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: PCI-Express X1
Processor compatibility: Intel Xeon E Series
RAID Supported: Yes
SATA RAID: 0
Socket Type: LGA 2011-3
Special Features: Cooling Armor
Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Household,Office,Video Production,Server
With CPU: No

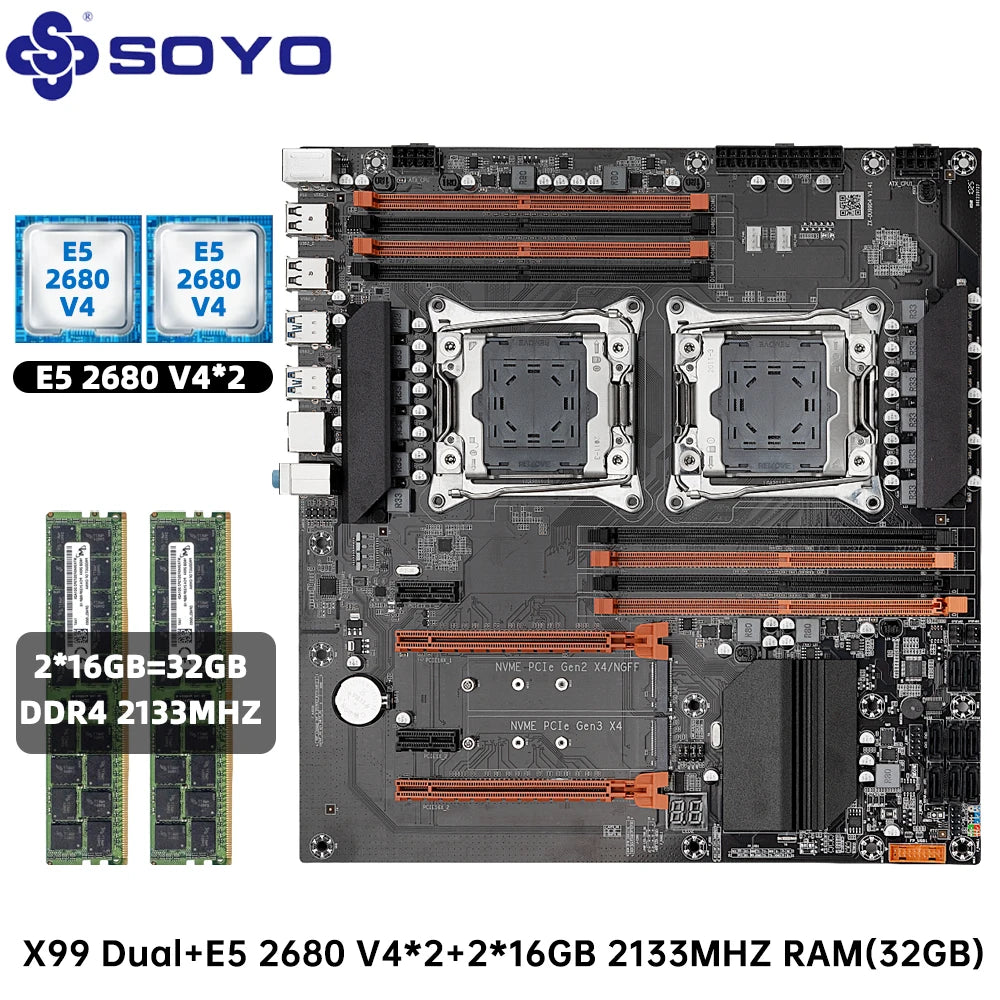

Motherboard+CPU+RAM: 1*SOYO-X99 Dual D4 +E5 2680 V4 CPU*2+DDR4 2133MHZ 16GB*2

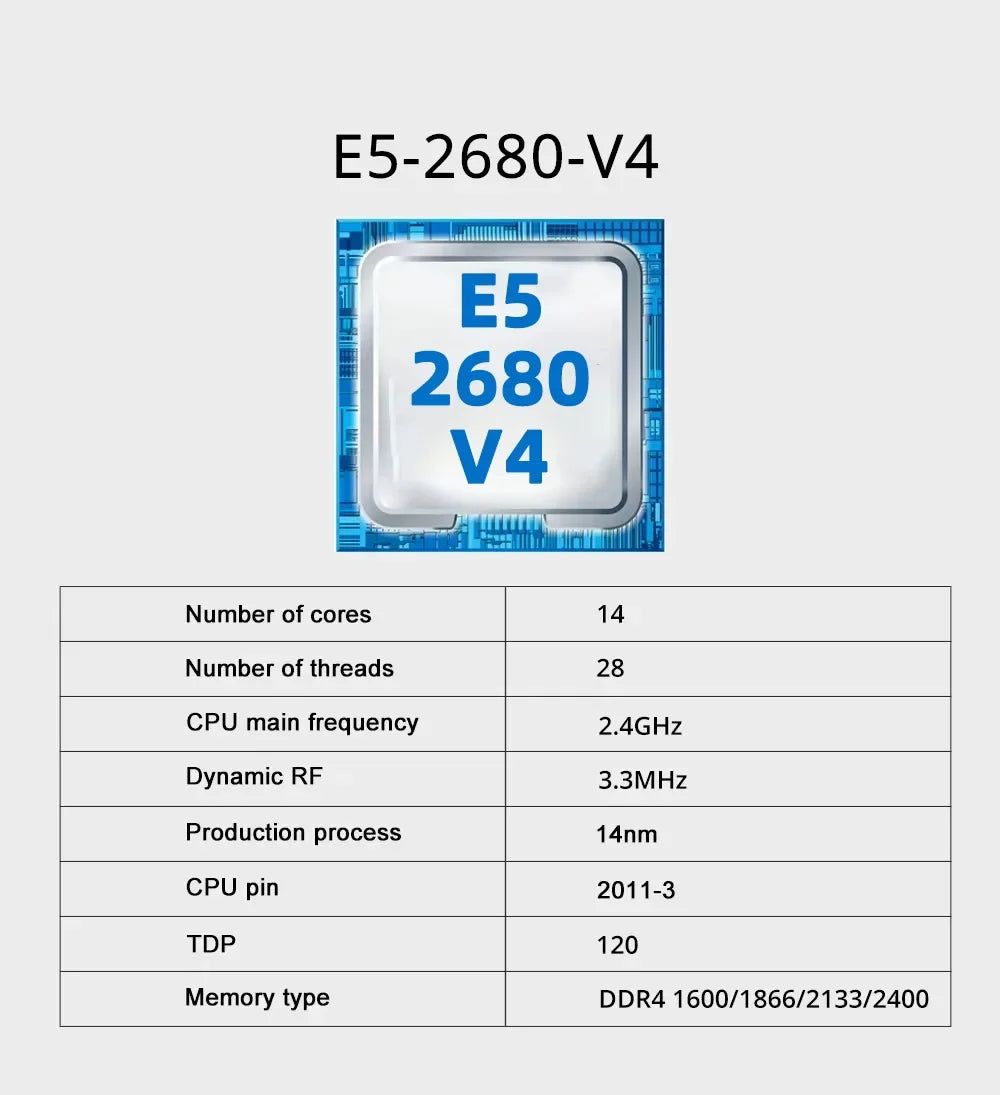

CPU:
Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
The CPU is used , please don't buy it if you mind

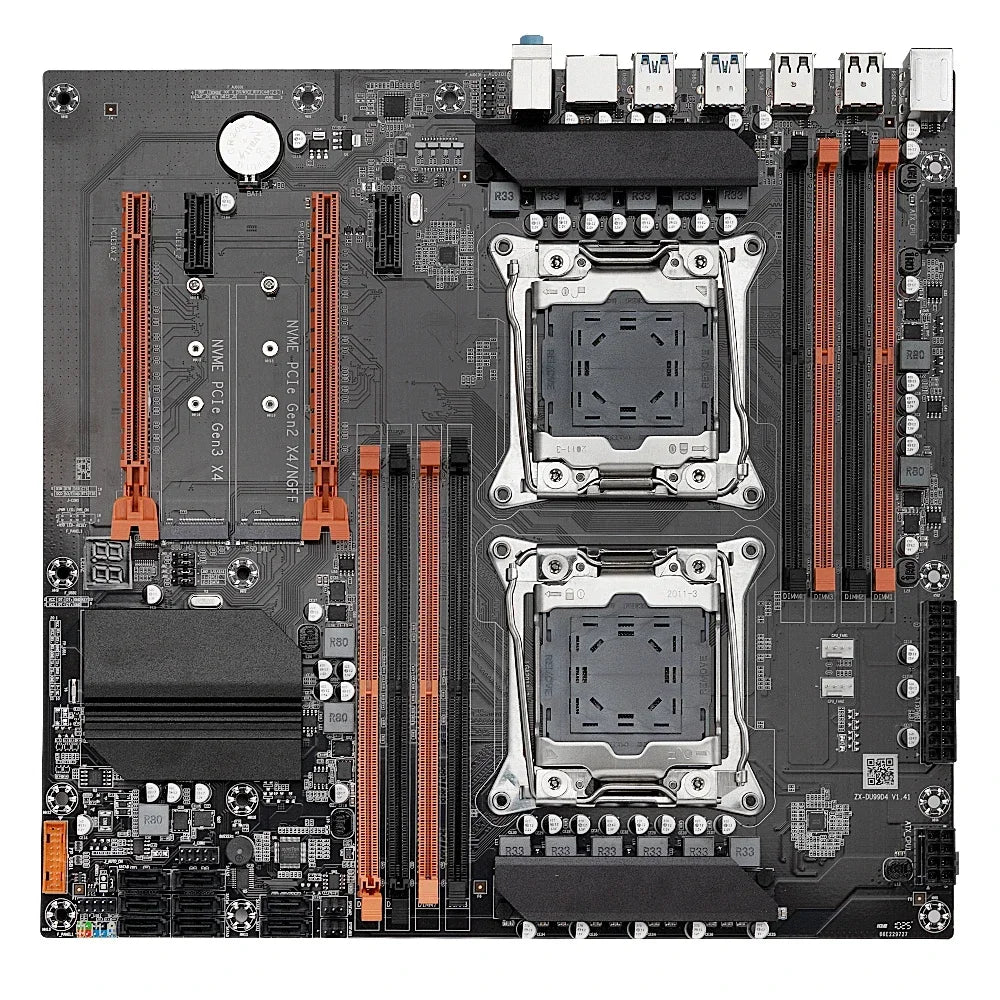

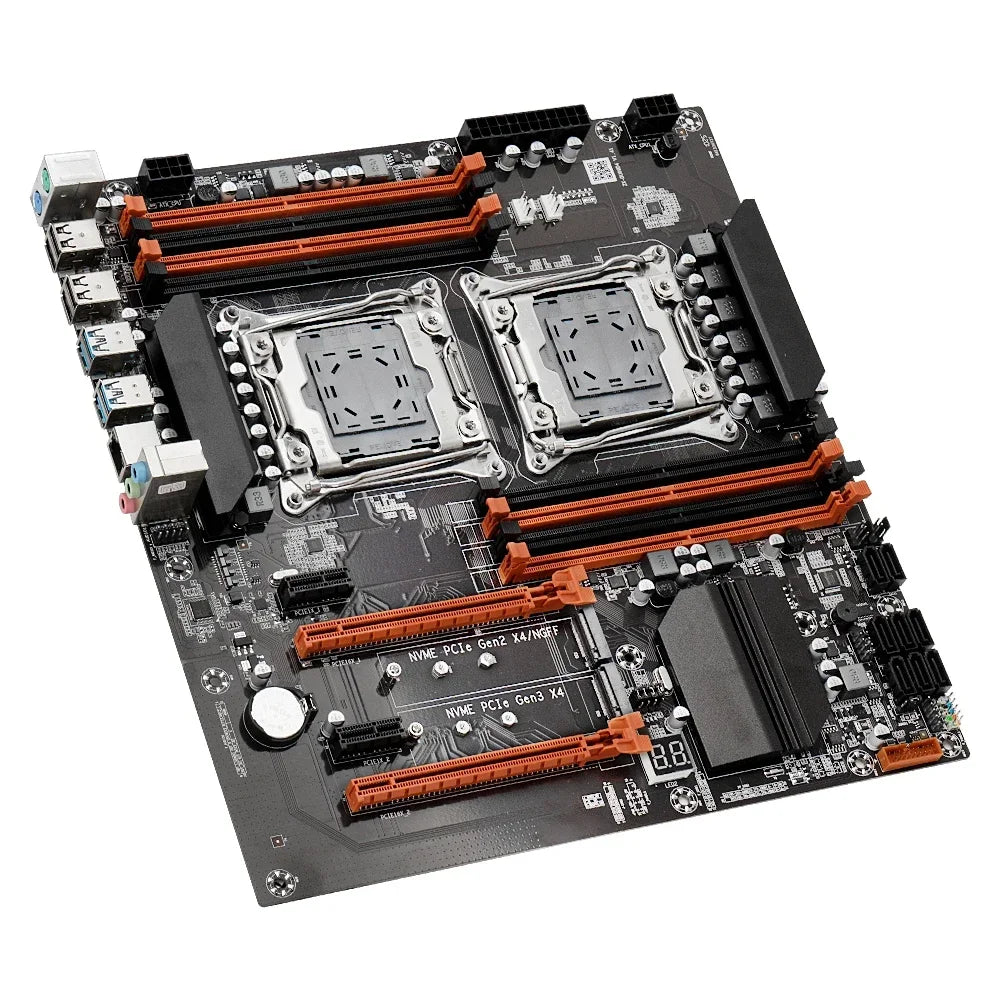

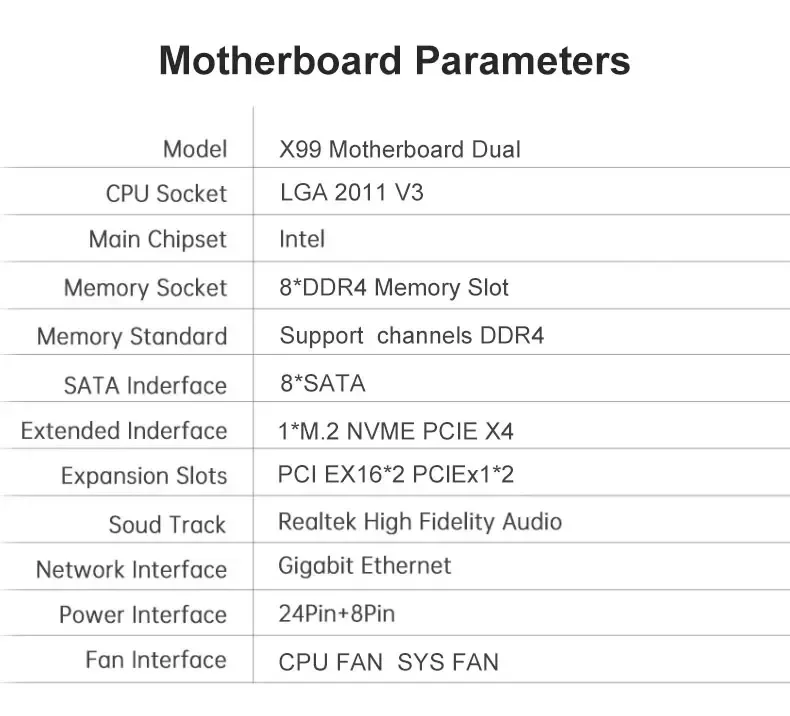

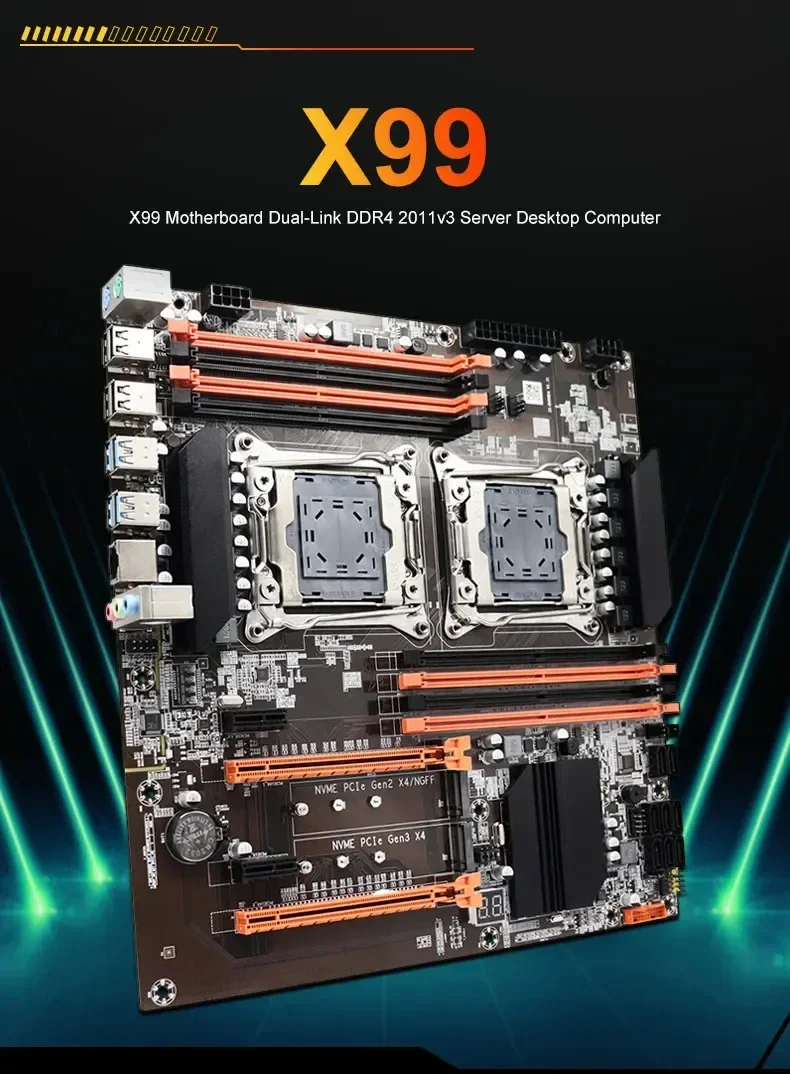

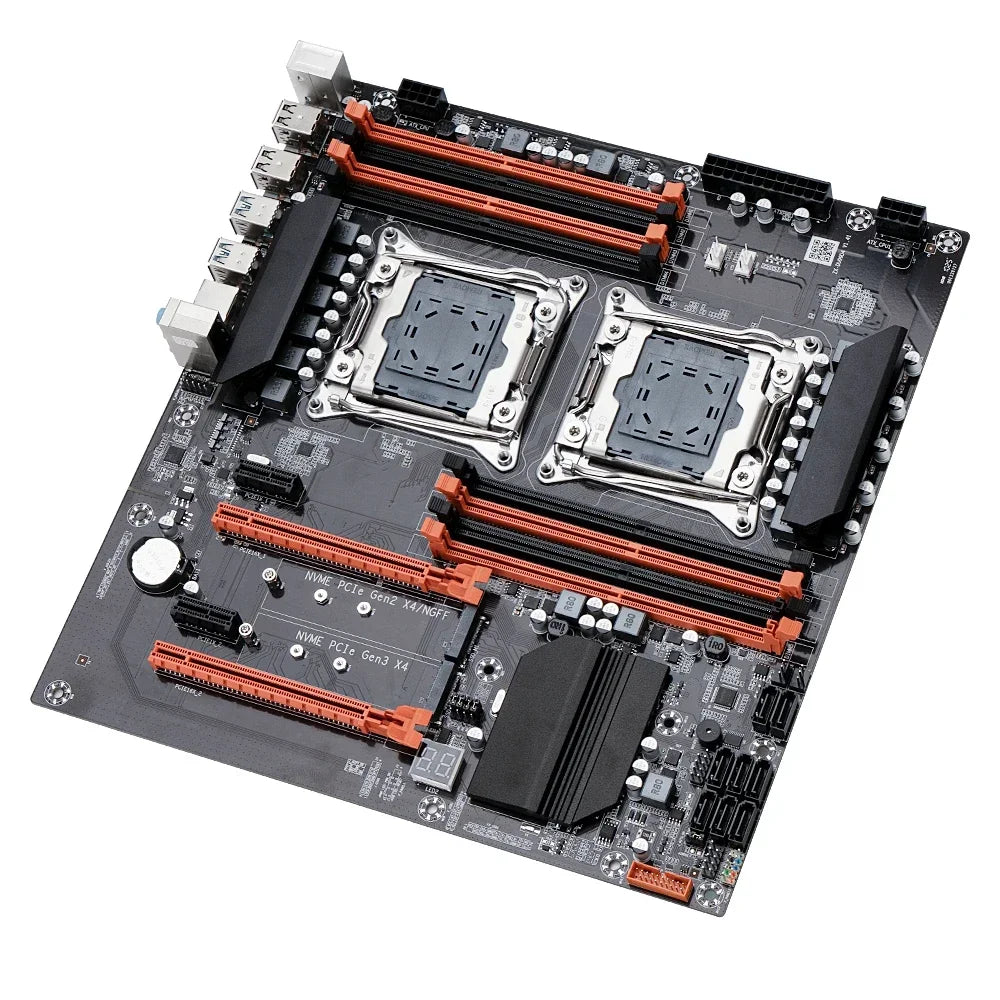

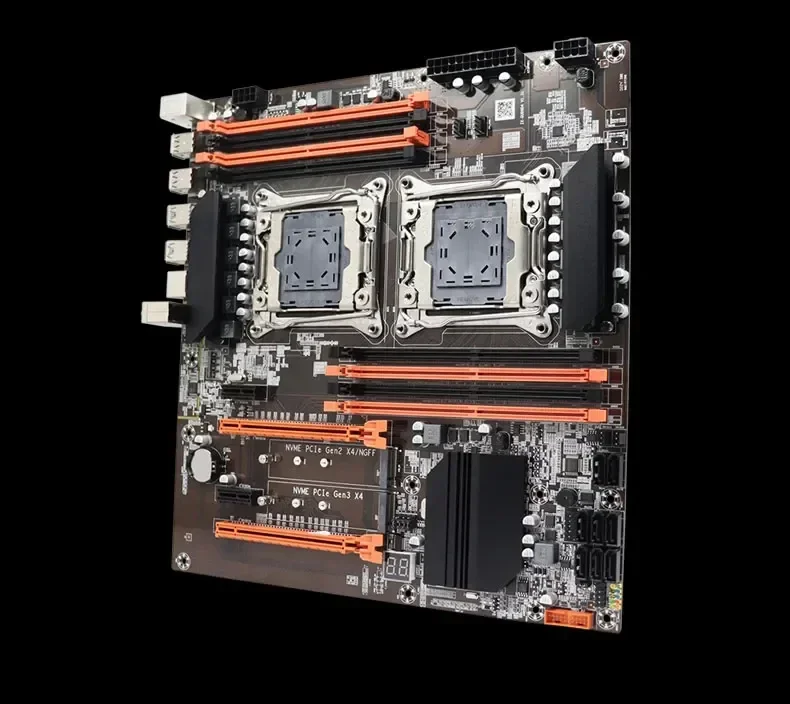

Motherboard Specifications:
**Product Specifications**
**CPU Support**
- Dual Intel LGA 2011 Socket Processors
- Compatible with Intel Xeon E5 Series (V3/V4)
**Chipset**
- Intel C612 Express Chipset
**Memory**
- 8x DDR4 Slots (Supports 2133/2400 MHz)
- Single DIMM Capacity: Up to 32GB
- Total Maximum Capacity: 256GB
- ECC/Non-ECC Server & Standard Memory Support

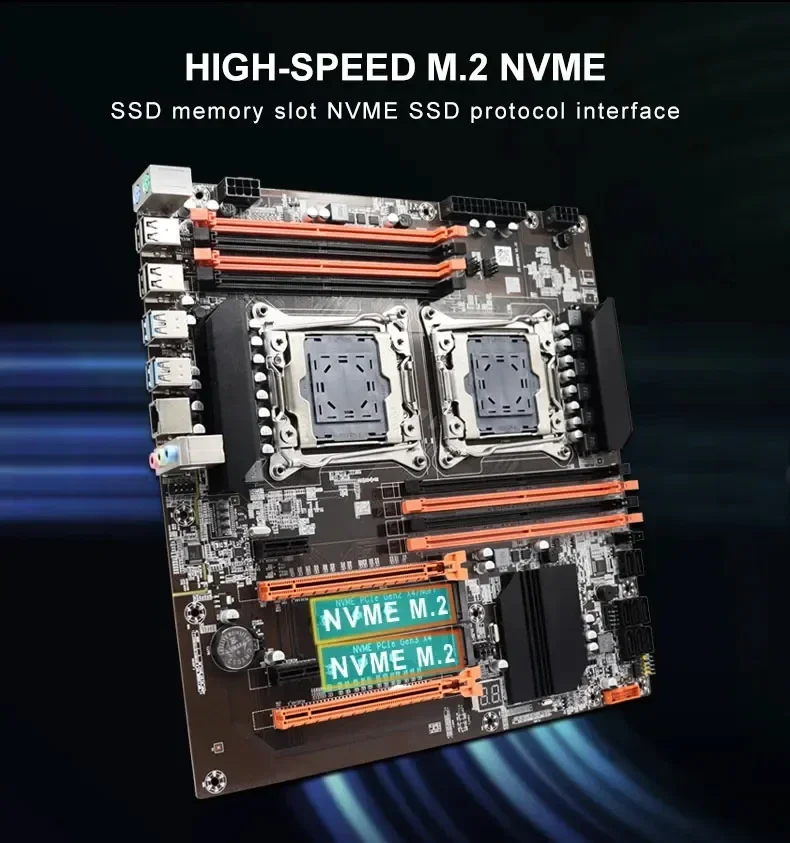

**Storage**
- 1x M.2 NVME/NGFF Combo Slot (Manual Switch)
- 1x Dedicated M.2 NVME Slot
- 8x SATA 3.0 (6 Gb/s) Ports
**Expansion Slots**
- 2x PCIe x16 Slots
- 2x PCIe x1 Slots

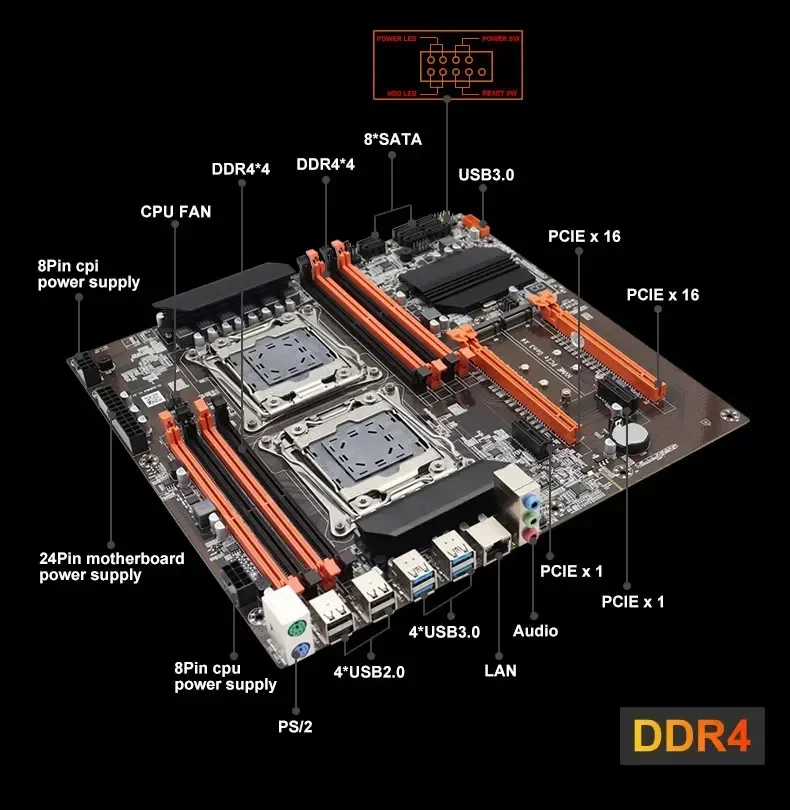

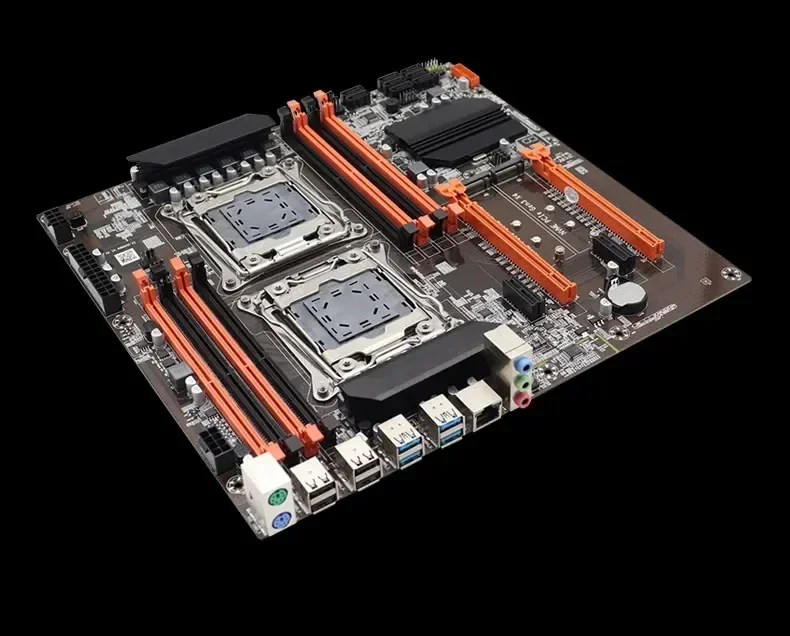

**I/O Ports**

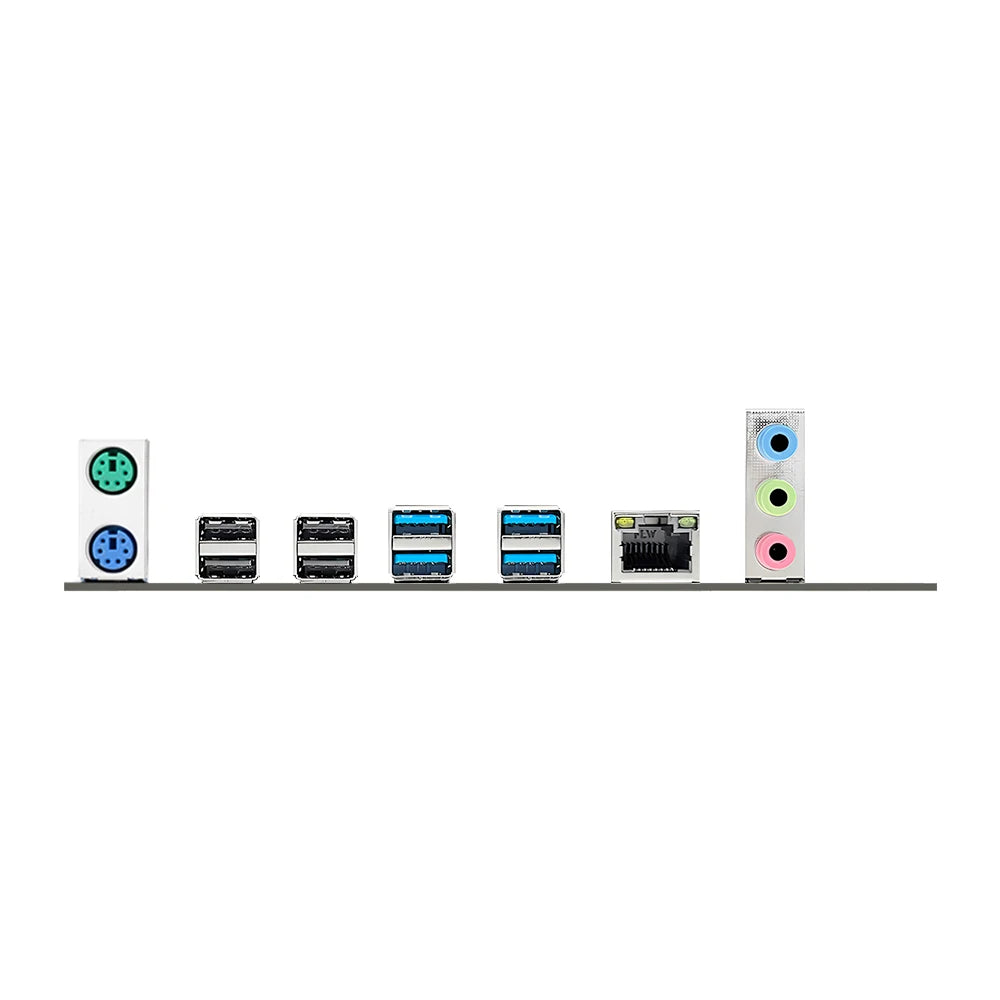

- **Rear Panel:**
- 1x PS/2 Port
- 6x USB 3.0 Ports
- 6x USB 2.0 Ports
- 1x RJ45 Gigabit LAN Port
- **Front Panel Headers:**
- 1x F_USB (Supports 2x USB 2.0)
- 1x FP_USB1 (Supports 2x USB 3.0)
- 1x Front Audio Header
- 1x COM1 Header
**Cooling & Power**
- 2x CPU_FAN Headers
- 2x SYS_FAN Headers
- 1x 24-Pin ATX Power Connector
- 2x 8-Pin ATX_CPU Power Connectors
**Audio**
- Realtek ALC Series High-Fidelity Audio Codec
- Dedicated Audio Capacitors for Enhanced Sound Quality
**Networking**
- **Default:** 1x Realtek 8111H Gigabit LAN (with Split Filter)
- **Optional Configurations:**
- 1x Gigabit LAN + Integrated Filter
- 1x Realtek 8106E 100 Mbps LAN
**Form Factor**

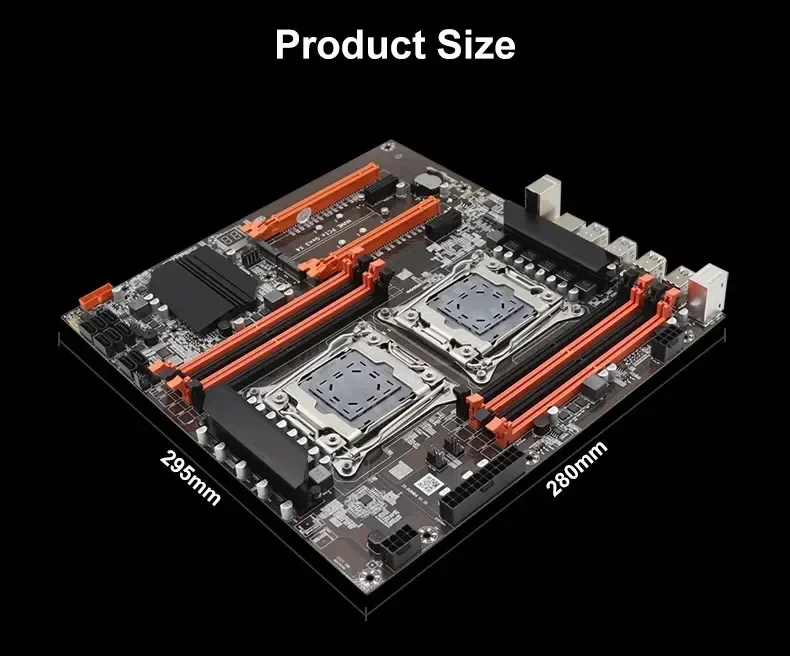

- Extended ATX Size: 281.2mm x 295mm
**Operating Environment**
- Temperature: -20°C to 60°C
- Humidity: 0-95% (Non-Condensing)
**Key Features**
- **Dual CPU Support** for High-Performance Computing
- **Massive Memory Capacity** Up to 256GB DDR4
- **Flexible Storage Options** with Dual M.2 Slots and 8x SATA Ports
- **Robust Expansion** via PCIe x16/x1 Slots
- **Enterprise-Grade Networking** with Gigabit/100 Mbps Options
- **Industrial Durability** for Harsh Environments
